RDP Netgear WPN824N



To setup RDP so it uses new port using Netgear WPN824N.

Router: Netgear WPN824N
Firware Version: V1.0.0.14NA
GUI Language Version: V1.0.0.33

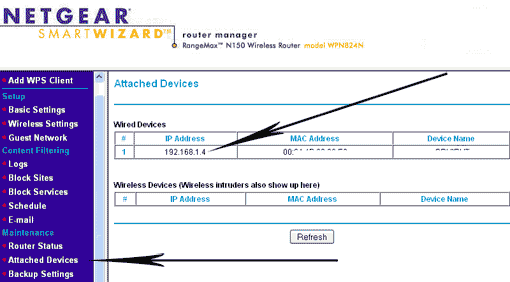

1) First click 'Attached Devices' and find local IP:

Attached Devices

1b) Click on 'Port Forwarding / Port Triggering ' in left navigation,

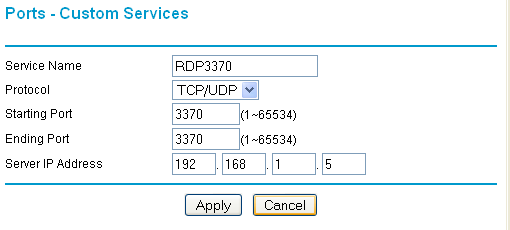

1c) Add port forwarding to the pc you want to open. Note, this image you would need to change from 192.168.1.5 to 192.168.1.4 or it will not work.

Ports - Custom Services

2) Then change the firewall:
(Start/Run.../Firewall.cpl or Start/Settings/Control Panel/Windows Firewall)

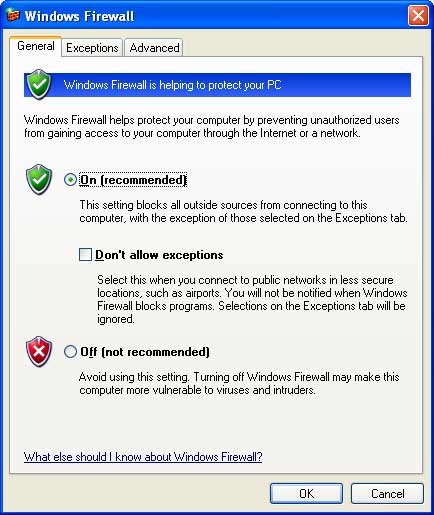

Windows Firewall

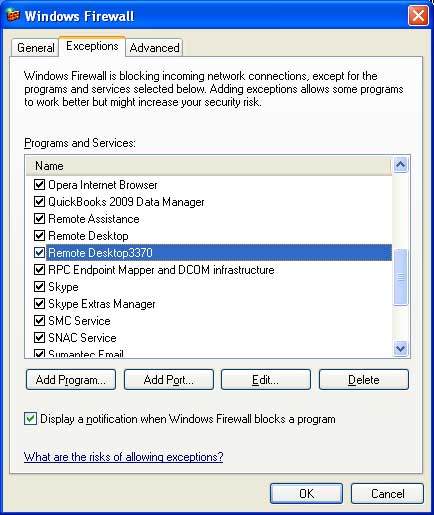

Windows Firewall Exceptions

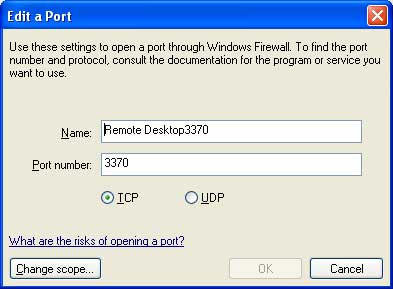

Edit a Port

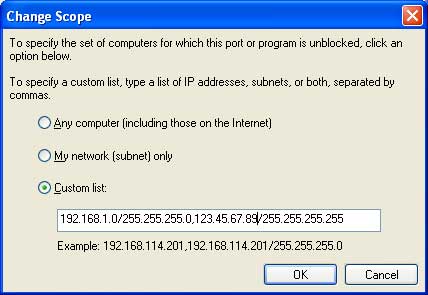

Change Scope
--For exact ip enter: 123.45.67.89/255.255.255.255
--For ip range enter: 123.45.67.0/255.255.255.0



3) To access from known remote location:

Start / Run command
Replaced 192.168.1.1 with the ip of the remote pc.

NOTE: Notice to have :<port number after the ip.
